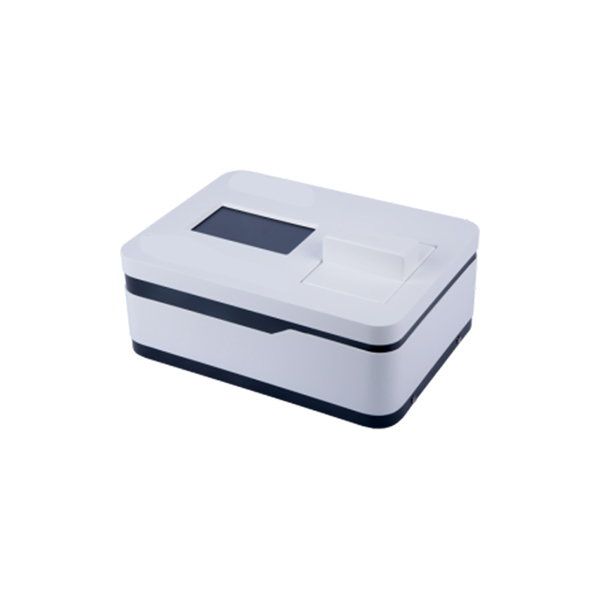

HKL-6006A Multi-parameter Water Quality Analyzer
Overview
The HKL-6006A Standard Multi-parameter Water Quality Analyzer, features a wide wavelength range, high sensitivity, user-friendly operation, simple structure, and an aesthetically pleasing design. Its standout advantages include a large LCD display, high-precision A/D converter, and Flash memory, giving it a clear edge over similar products in its class.
This instrument is a full-band water quality analyzer with a wavelength range of 400-750nm. Its detection principle complies with the latest methods in the environmental protection industry, featuring rapid testing, simple operation, and low consumable costs.
Principle: This series of instruments is based on the Lambert-Beer law, which states that substances selectively absorb light. Under excitation by light, an absorption effect occurs, and different substances exhibit their own absorption spectra. When a single wavelength of light goes through a solution it transfers its energy to the solution by means of absorption. The decrease in the light energy is in direct proportion to the concentration of the substance.
Features
The photometer software system and the rapid water quality testing software system are two separate but related software systems that are offered for different purposes. Users can choose which one suits their needs better.
Systems automatically checking themselves at startup and performing automatic correction of wavelength/automatic positioning of wavelength/automatic switching of filter/automatic switching of light source.
The screen was 1024*768 pixels, 5-inch color touchscreen, and it had a complete English operation menu.
Users can create custom programs based on their own needs.
The colorimetry method used was colorimetric tube (integrated digestion and colorimetry tube), without the need of changing adapter for cuvette conversion, it was very neat and fast.
Wavelength calibration: automatic calibration.
Batch processing capacity: 8×2/16 samples.
Intelligent touch screen dual-zone PID temperature control technology with dual over-temperature protection system ensures safe, uniform, and rapid heating.
Light source: Imported long-life tungsten lamp.
It has data storage capability, capable of storing 9999 data sets.
Technical Parameters
Optical path system: quasi-dual beam
Wavelength range: 400-750nm
Scattering: ≤0.1%T @ 360nm
Bandwidth: 4nmBandwidth: 4nm
Measurement range: 0-400%T, -0.601-4.0A
Wavelength accuracy: ±1.2nm
Wavelength repeatability: 1nm
Transmittance accuracy: ±0.4%T
Stability: 0.002 A/h @ 500nm
Display: 5-inch color touch LCD
Host dimensions: 430mm*320mm*180mm; Weight: 10kg
Decomposer dimensions: 220mm*170mm*160mm; Weight: 2.32kg
Measure items and scopes
Serial | Test items | measuring range | evaluated error | Lower detection limit |
1 | COD
| 0-150mg/L | ≤±5% | 5 |
150-1500mg/L | ||||
1500-15000mg/L | ||||
2 | Permanganate index | 0-5mg/L | ≤±5% | 0.1 |
3 | Ammonia nitrogen | 0-5mg/L | ≤±3% | 0.05 |
5-50mg/L | ||||
4 |
Total phosphorus
| 0-2mg/L | ≤±5% | 0.02 |
2-20mg/L | ||||
5 | Total nitrogen | 0-20mg/L | ≤±5% | 0.5 |
20-100mg/L | ||||
6 | Residual chlorine | 0-2mg/L | ≤±3% | 0.1 |
2-10mg/L | ||||
7 | Total chlorine | 0-2mg/L | ≤±3% | 0.1 |
2-10mg/L | ||||
8 | Chlorine dioxide | 0-2mg/L | ≤±5% | 0.05 |
2-20mg/L | ||||
9 | Sulfate | 0-200mg/L | ≤±5% | 5 |
10 | Nitrate nitrogen | 0-10mg/L | ≤±5% | 0.5 |
11 | Phosphate | 0-2mg/L | ≤±5% | 0.02 |
2-20mg/L | ||||
12 | Nitrite nitrogen | 0-1mg/L | ≤±5% | 0.02 |
1-5mg/L | ||||
13 | Sulfide | 0-1mg/L | ≤±5% | 0.01 |
14 | Fluoride | 0-2mg/L | ≤±5% | 0.02 |
15 | Prussiate | 0-0.5mg/L | ≤±5% | 0.004 |
16 | Formaldehyde | 0-2.5mg/L | ≤±5% | 0.05 |
17 | Volatile phenol | 0-5mg/L | ≤±5% | 0.1 |
5-10mg/L | ||||
18 | Hydrazine | 0-0.5mg/L | ≤±5% | 0.01 |
19 | Aniline compounds | 0-1mg/L | ≤±5% | 0.02 |
1-5mg/L | ||||
20 | Silica | 0-5mg/L | ≤±5% | 0.1 |
21 | Total alkalinity | 0-100mg/L | ≤±5% | 0.01 |
100-1000mg/L | ||||
22 | Total hardness | 0-5mg/L | ≤±5% | 0.05 |
5-200mg/L | ||||
23 | Chloride (chloride ion) | 0-10mg/L | ≤±5% | 0.05 |
10-100mg/L | ||||
24 | Copper | 0-1mg/L | ≤±5% | 0.05 |
1-10mg/L | ||||
25 | Zinc | 0-5mg/L | ≤±5% | 0.05 |
26 | Nickel | 0-4mg/L | ≤±5% | 0.1 |
27 | Iron | 0-5mg/L | ≤±5% | 0.01 |
5-25mg/L | ||||
28 | Hexavalent chromium | 0-1mg/L | ≤±5% | 0.01 |
29 | Cadmium | 0-0.5mg/L | ≤±5% | 0.05 |
30 | Manganese | 0-5mg/L | ≤±5% | 0.05 |
5-10mg/L | ||||
31 | Total chromium | 0-1mg/L | ≤±5% | 0.01 |
32 | Aluminium | 0-0.5mg/L | ≤±5% | 0.01 |
0.5-5mg/L | ||||
33 | Silver | 0-1mg/L | ≤±5% | 0.05 |
34 | Arsenic | 0-0.1mg/L | ≤±5% | 0.005 |
0.1-0.5mg/L | ||||
35 | Antimony | 0-10mg/L | ≤±5% | 0.1 |
36 | Mercury | 0-0.5mg/L | ≤±5% | 0.002 |
37 | Lead | 0-0.5mg/L | ≤±5% | 0.01 |
38 | Tone | 0-500PCU | ≤±3% | 5 |
39 | Turbidity | 0-100NTU | ≤±3% | 0.5 |
100-500NTU | ||||
40 | Suspended matter | 0-100mg/L | ≤±3% | 5 |
100-1000mg/L | ||||
41 | Dissolved oxygen | 0-10mg/L | ≤±5% | 0.1 |
42 | Anionic surfaceactive agent | 0-1mg/L | ≤±5% | 0.01 |
43 | PH | 6-8.5 | ≤±5% |
|
44 | Urea | 0-5mg/L | ≤±5% | 0.05 |
5-25mg/L | ||||
45 | Cyanuric acid | 5-50mg/L | ≤±5% | 0.1 |
50-250mg/L | ||||
46 | Ozone | 0-2.5mg/L | ≤±5% | 0.2 |
2.5-25mg/L | ||||
47 | Cobalt | 0-0.5mg/L | ≤±5% | 0.05 |
48 | Boron | 0-2.5mg/L | ≤±5% | 0.1 |
49 | Beryllium | 0-0.1mg/L | ≤±5% | 0.01 |
FAQ
Q1: What are the outstanding advantages of the product?
A:The HKL-6006A Standard Multi-parameter Water Quality Analyzer, features a wide wavelength range, high sensitivity, user-friendly operation, simple structure, and an aesthetically pleasing design. Its standout advantages include a large LCD display, high-precision A/D converter, and Flash memory, giving it a clear edge over similar products in its class. This instrument is a full-band water quality analyzer with a wavelength range of 400-750nm. Its detection principle complies with the latest methods in the environmental protection industry, featuring rapid testing, simple operation, and low consumable costs.
Q2: What is the working principle of the instrument?
A:This series of instruments is based on the Lambert-Beer law, which states that substances selectively absorb light. Under excitation by light, an absorption effect occurs, and different substances exhibit their own absorption spectra. When monochromatic light passes through a solution, its energy is absorbed and attenuated. The degree of light energy attenuation is proportional to the concentration of the substance.
Q3: Do you provide online training services?
A: If assistance is needed, we will provide you with online installation and commissioning services, as well as comprehensive operational training. Additionally, we offer year-round, 24/7 online training support for end users.
Q4: What is the minimum order quantity? How long is the delivery lead time?
A: The minimum order quantity is one unit, and delivery is approximately 20 days after advance payment.
Q5: What sort of post-sales support do you offer?
A: You can count on us to support you extensively and dependably after sales throughout the life of the product. It covers: (1) Quick Reply: The customer service team is always ready to respond so that you will be able to get feedback timely to your requirements. (2) Expert Technical Engineer Support: The engineering team, which has a lot of experience, conducts remote diagnostics and provides on-site services to solve technical issues rapidly.(3) Ongoing Empowerment: We provide extended online training and support to assist your team in making the most of the instrument’s features.
