HKL-SSR Series Rotational Viscometer for Small-Volume Samples
Overview
The HKL-SSR Series Digital Rotational Viscometer implements the measurement of viscosity based on a coaxial cylinder and a small-sample adapter. Therefore, the volume of the specimen required for one measurement is just 7-13 ml (except for Rotor No. 0, which requires 21 ml). It can also be equipped with a circulating water jacket for temperature control. When used with a thermostatic bath, it maintains the exact sample temperature. The instrument is easy to operate and delivers reliable, accurate results, making it ideal for measuring valuable or limited-volume samples.
Features
1. Front-mounted leveling bubble allows easy horizontal adjustment while seated.
2. Timed measurement function.
3. Coaxial cylinder structure.
4. Measurement accuracy up to two decimal places.
5. User-friendly and reliable operation.
6. Small-sample adapter minimizes required volume.
7. Two RS232 interfaces for direct connection to thermal printers and computers.
Technical Parameters
Model | HKL-LV-SSR |
Display | Backlit LCD, digital display |
Speed (r/min) | 0.3, 0.6, 1.5, 3, 6, 10, 12, 15, 20, 25, 30, 40, 50, 60, 70, 80, 90, 100 (18 speeds) |
Rotors | Standard: 18#, 25#, 31#, 34# |
Measurement Range | 1–1,600,000 mPa·s |
Sample Volume | Rotor No. 0 (ULR): 21 ml (range: 1–1,000 mPa·s) |
Measurement Error | ±2% (Newtonian liquids) |
Repeatability Error | ±1% (Newtonian liquids) |
Output Interfaces | Two RS232 ports (connects to printers/PCs) |
Temp. Probe Port | Standard |
Dimensions (mm) | 300 × 300 × 450 |
Model | HKL-RV-SSR | HKL-HA-SSR | HKL-HB-SSR |
Display | Backlit LCD, digital display | ||
Speed (r/min) | 0.5/1/2/2.5/4/5/10/15/20/25/30/40/50/60/70/80/90/100 (18 speeds) | ||
Rotors | Standard: 21#, 27#, 28#, 29# | ||
Measurement Range | 6.4 - 2 million | 12.8 - 4 million | 51.2 - 16 million |
Sample Volume | ULR (Rotor 0): 21 ml | ||
Measurement Error | ±2% (Newtonian liquids) | ||
Repeatability Error | ±1% (Newtonian liquids) | ||
Output Interfaces | Two RS232 interfaces, connectable to printers and computers | ||
Temp. Probe Port | Standard | ||
Dimensions (mm) | 300 × 300 × 450 | ||
Optional Accessories

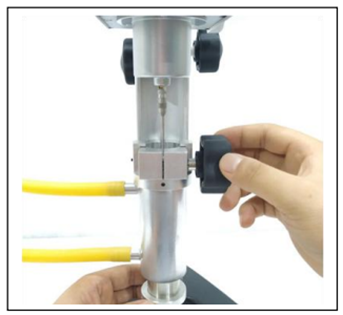

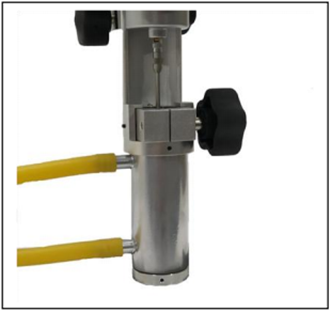

1. Enhanced Ultra-Low Viscosity Adapter ULR (Rotor 0)
Designed specifically for low-viscosity fluid measurement
Available in two specifications: jacketed and non-jacketed
Minimum detection limit as low as 1 cP (dependent on the viscometer model used)
Stainless steel construction for easy cleaning
Operating temperature range: -40℃ to 200℃
 |  |
2. HKL-DC0506W Low-Temperature Thermostatic Bath for Viscometers

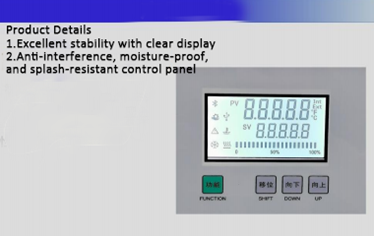

It uses a highly capable single-chip microcomputer as its brain, features automatic PID adjustment, and is equipped with high-quality Japanese platinum resistors. A top-notch Embraco refrigeration compressor provides rapid cooling and precise temperature regulation. All parameters are clearly displayed on a large backlit LCD screen. Break protection and thermostatic liquid level protection are included to prevent instrument malfunction and heating element operation without water. The instrument operates reliably and stably, with user-friendly controls.
Great linear response through the whole temperature control range. Thanks to a display resolution of 0.1, the DCW (N) series can limit the dosage accuracy error to less than 0.2°C and keep the temperature fluctuations within ±0.05°C.
Temperature Control Range: -5 ~ 100℃
