HKL-5001 Ball-on-Cylinder Lubricity Evaluator (BOCLE)
Overview

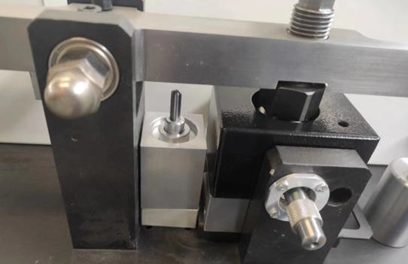

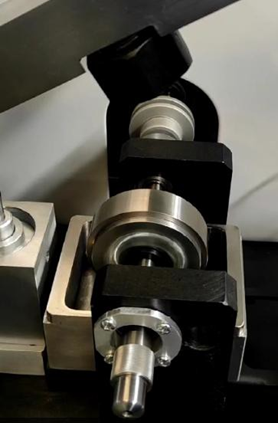

HKL-5001 Ball-on-Cylinder Lubricity Evaluator (BOCLE) conforms to ASTM D5001 Standard Test Method for Measurement of Lubricity of Aviation Turbine Fuels by the Ball-on-Cylinder Lubricity Evaluator (BOCLE) and ASTM D6078 Standard Test Method for Evaluating Lubricity of Diesel Fuels by the Scuffing Load Ball-on-Cylinder Lubricity Evaluator (SLBOCLE). The fluid under test is placed in a test reservoir in which atmospheric air is maintained at 10% relative humidity. A non-rotating steel ball is held in a vertically mounted chuck and forced against the outside diameter of an axially mounted cylindrical steel ring with an applied load. The test ring is rotated at a fixed speed while being partially immersed in the fluid reservoir. This maintains the ring in a wet condition and continuously transports the test fluid to the ball/ring interface. The wear scar generated on the test ball is a measure of the lubricating property of the fluid.
Features
It can easily and conveniently operate without additional tools.
Test balls were loaded at a constant weight for 30 minutes.
After testing, the small and long axes of the resulting marks were measured by a microscope.
The wear scar limits the lubricity of aviation turbine fuel or other liquids.
This tester performs the ASTM D5001 standard test, BOCLE (Measurement of Lubricity of Aviation Turbine Fuels by the Ball-on Cylinder Lubricity Evaluator).This test is used to assess the lubricating properties of aviation fuels. Whilst the main job of the fuel is to provide thrust in a jet engine, it is important that the engine’s internal components are kept well lubricated during use, protecting against wear and potential catastrophic failure.
Being a named instrument in the ASTM D5001 standard test, the ABCS-001 represents the industry leading rig in repeatable, reliable fuel lubrication testing. With a fully automated test sequence and minimal maintenance, the ABCS-001 requires little user intervention. The simple test setup and tight quality control on the PCS supplied test specimens ensures good accuracy, reliability and repeatability, giving you full confidence in your results.
 |  |

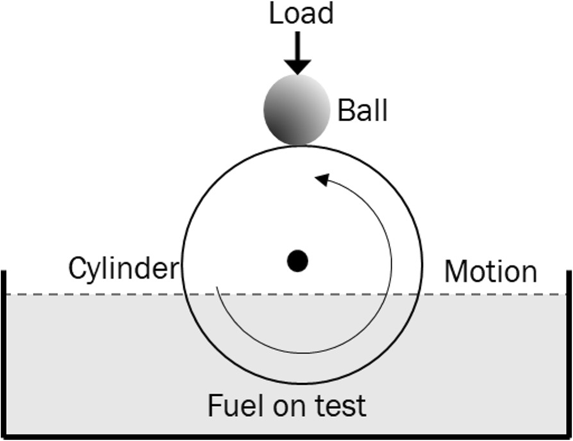

| Diagram of the principle |
Main specifications, technical parameters and technical indicators
Volume of the tested sample: 50ml± 1ml.
Temperature of the tested sample, 25 ℃± 1℃.
Relative air humidity in the test chamber at a temperature of 25℃± 1℃: ≤10% ± %0.2.
Air consumption during preliminary preparation of the tested sample: 0.50 l/min of flow passing through the sample and 3.3 l/min over the sample for 15 minutes.
Air consumption during the test: 3.8 l/min over the sample.
Applied load: 1000 g (500 g load).
Cylinder rotation speed: 240rpm ± 1rpm (Maximum 1000r/min)
Test time: 30min±0.1min.
Device power supply: 220 - 240 V, 50 Hz.
Use in a temperature range no worse than plus 15 to plus 30°C.
Principle
A half inch diameter steel ball is loaded against a rotating steel cylinder which is partially immersed in a fuel reservoir.50 ml of test fuel is placed in the reservoir and maintained at 25 °C under a controlled airflow at 10 % relative humidity. The stationary steel ball is loaded against the rotating disc with an applied load of 1 kg, and the test cylinder is then rotated at 240 rpm. After conditioning then the 30- minute test, the wear scar generated on the test ball is measured, reporting the mean wear scar diameter (WSD). Lubricating properties of a fuel sample are then assessed by the magnitude of its WSD. All the test parameters are preprogramed, and the test is fully automated.
Product configuration list
Optional Accessories:
Microscope – with certified micrometer and holder for upper specimen
Software – An optional PC based data logging application allows all test data to be recorded during the test, and a summary printed out confirming that all parameters are within the specified limits
Wear Scar Camera package
Compressor and Dryer
Zero Air Generator
WE WILL PROVIDE ALL THE ACCESSORIES AS FOLLOWS:
Automatic analyzer of the lubricity of aviation fuels according to the BOCLE method - 1 set .
Microscope with 20, 40 and 100 times magnification, measurement of the wear spot on the ball with an accuracy of 0.01 mm with calibration - 1 set .
Ultrasonic bath with heating with a volume of 1.9 l and a power of 40 W - 1 set .
Set of consumables:
Test balls (made of chrome-plated steel according to AISI No.E-52100, degree of polishing - 5-10, diameter 12.7 mm and hardness according to the Rockwell scale in the range from 64 to 66) - 1000 pcs.
Test rings (made of SAE 8720 steel, with a surface treated to a roughness of 0.56-0.71 μm, hardness on the Rockwell scale in the range from 58 to 62) - 100 pcs.
Test samples within the limits allowed by the test method:
Standard sample A (according to ASTM D 5001) – 1 liter, validity within 12 months
Standard sample B (according to ASTM D 5001) – 1 liter, validity within 12 months
Standard set of spare parts based on 2 year of operation.
A set of hoses for connecting the device to the compressor - 5 m.
A set of filters to ensure the purity of the air that will flow from the compressor to the device - 1 set.
Operating instructions (Written in English and translation copy ) – 1 set.
A set of additional software for working with a microscope and a device for the Windows operating system - 1 set.
