Refrigerated Benchtop High-Speed Centrifuge

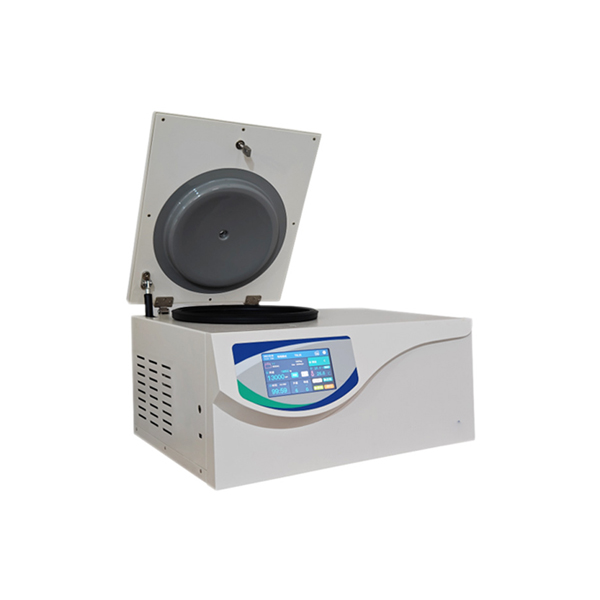

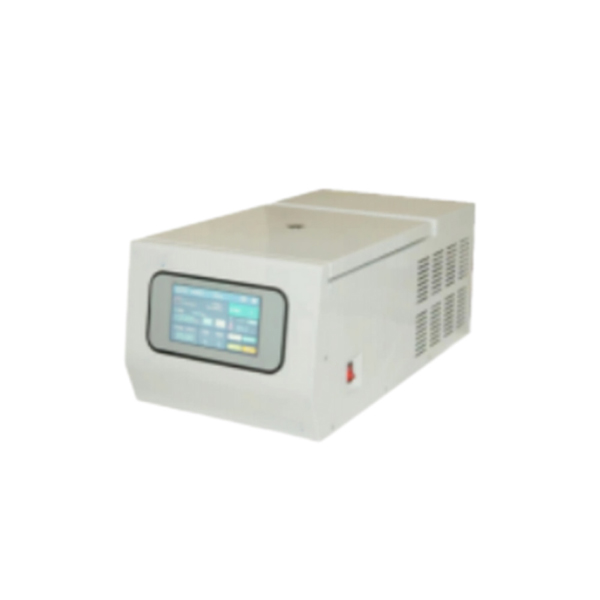

HKL-TGL21 High-Speed Benchtop Refrigerated Centrifuge

Overview

The High-speed Refrigerated Centrifuge series has been designed specifically for use in molecular biology (both plant and animal), microbiology, nucleic acid extraction, cell separation, and clinical sample analysis. It serves as a critical component in research projects that are conducted in hospitals, life science laboratories, agricultural research centers, environmental monitoring departments, and universities.

Features

1. The system is centered on a high-accuracy microcomputer that manages the inverter duty motor. Real-time display of speed, temperature, process time, and acceleration/deceleration profiles is provided by a 7-inch HMI touchscreen. The system enables live monitoring of operation logs and error history. It has a USB interface for quick data transfer without losing the data integrity.

2. Provides users the option to design multi-stage run protocols and automatically calculate the RCF. It also makes it possible to change, save, or even make new customized programs.

3. Featuring a robust steel framework, blast-proof sealed chamber, and a sophisticated multi-layer damping system that ensures the highest level of stability and near-silent functionality.

4. Equipped with a sophisticated cooling system, it uses a green, non-fluorine compressor. It gets to the desired temperature of 4°C just in five minutes, so the waiting time is almost eliminated and the overall efficiency is significantly improved.

5. Equipped with a sensor-activated electric door lock and a emergency release mechanism. Full protection provided for instances of overspeed, overload, and unsafe lid status.

6. It can be used with different rotor capacities to meet various testing needs in different fields.

7. Also comes with a manual program lock and automatic rotor recognition features.

Technical Parameters

1. Max Speed: 21000 r/min

2. Noise Level: ≤ 60 dB

3. Maximum Capacity: 4×300 ml

4. Centrifuge Chamber Diameter: φ400 mm

5. Maximum Relative Centrifugal Force (RCF): 31310 ×g

6. Power Supply: AC 220 V / 50 Hz / 2.5kW

7. Timer Range: 1min~99h59min

8. Speed Accuracy: ±10 r/min

9. Temperature Control Range: -20°C~+40°C

10. Temperature Control Accuracy: ±1°C

11. Net Weight:120kg

12. Dimensions (L×W×H): 730× 682×396 mm

Compatible Rotor

Centrifuge Rotor

FAQ

1. Q1: What is the main usage of HKL-TGL21 High-Speed Benchtop Refrigerated Centrifuge?

   A: The High-speed Refrigerated Centrifuge series has been designed specifically for use in molecular biology (both plant and animal), microbiology, nucleic acid extraction, cell separation, and clinical sample analysis. It serves as a critical component in research projects that are conducted in hospitals, life science laboratories, agricultural research centers, environmental monitoring departments, and universities.

2. Q2: Can you offer technical support and help with model selection?

   A: Yeah, we provide technical support covering the entire process. Our engineers who have been in the industry for a long time can help you figure out a cost-effective setup based on what is crucial for your requirement or the goals of your test.

3. Q3: Could you provide online training services?

   A: In the event you require help, we are ready to offer you online installation and commissioning services and thorough operational training. Furthermore, we provide end users with 24/7 online training support throughout the year.

4. Q4: What is the smallest amount I can order? Is it possible to buy a single unit for sample testing?

   A: Our minimum order quantity is 1 unit. You can buy a unit for testing our product performance. For wholesale orders, we provide discounted pricing.

5. Q5: What international shipping options do you offer?

   A: We have a wide range of international shipping options to suit various volumes and budgets so that your goods reach you smoothly. If the item is time-critical or of high value, our International Express service will make use of the top logistics companies DHL, FedEx, and UPS to ensure a fast delivery. When you want a reasonable mix of speed and price for a medium shipment, then our Air Freight service would be the best selection. For very large orders, our Sea Freight options, which include Full Container Load (FCL) and Less than Container Load (LCL), provide the most cost-efficient mode of transport. Normal transit time is about 20 to 40 days depending on the destination. Besides, we also provide dedicated Rail Freight services via the stable and efficient China-Europe Railway Express to our customers residing in the Eurasian continent including Central Asia, Russia and Europe.
