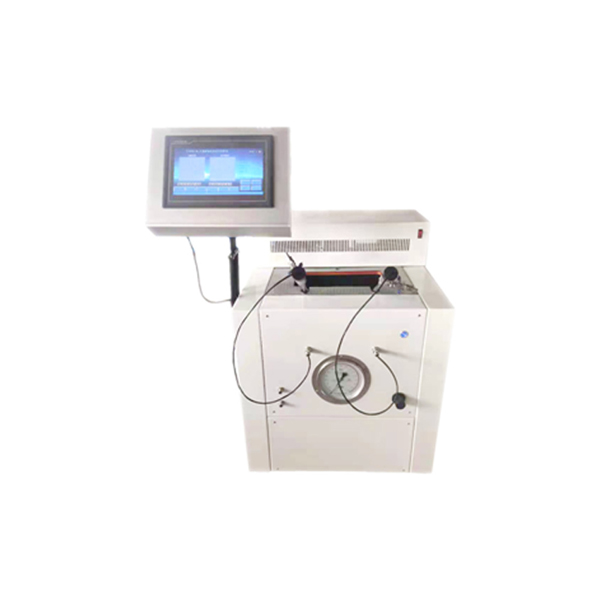

HKL-2272 Apparatus for Oxidation Stability of Steam Turbine Oils by Rotating Pressure Vessel
Overview
The apparatus conforms to ASTM D2272 Standard Test Method for Oxidation Stability of Steam Turbine Oils by Rotating Pressure Vessel. It determines oxidation stability of new and in-service turbine oils and other industrial oils; it utilizes an oxygen-pressured vessel to evaluate the oxidation stability of new and in-service turbine oils having the same composition (base stock and additives) in the presence of water and a copper catalyst coil at 150°C.
Features
Being equipped with a control system on an industrial computer basis, this tool combines functions of analysis, result processing, and printing into a single one for operation that is friendly to the user.
This instrument is equipped with a double stainless steel heating element for the oil bath, along with a motor-operated stirring, guaranteeing fast heating and even temperature distribution.
The instrument has a built-in automatically safety protection system which turns off the power if the temperature of the oil bath goes beyond 150℃.
The rotating motor above the oil bath gives power to two oxygen bombs with chain transmission. This design guarantees that no leak will occur even after a long time of use.
The oil bath temperature is regulated by a computer and can be set to any temperature between room temperature and 150℃ with a precision of ±0.1℃.
The oxygen bombs are set at a 30° angle from the water surface. One motor controls both bombs through sector gears, allowing them to rotate on their axis at 100 rpm for complete immersion and consistent heating in the oil bath.
The oxygen bomb pressure equipment takes advantage of imported quick-connect couplings allowing tool-free plug-and-play operation, greatly simplifying the process.
Each oxygen bomb incorporated in this instrument is carefully crafted from top-grade stainless steel through precision machining. They have a threaded sealing mechanism, and each bomb includes a separate mounting base along with a stainless steel torque wrench that is specially made for tight fastening, etc. Therefore, they are perfect for laboratory technicians’ handling.
The instrument is fitted with a double oxygen bomb cupboard, so it can switch on two bombs at one time for twin testing or one by one.
This instrument is specially fitted with a coil winding machine (gas charging system) that allows the users to prepare copper catalyst coils up to the standard level for testing and to perform the gas (oxygen) charging and discharging operations. This makes the entire operation of preparing copper catalyst coils and handling oxygen charging/discharging much easier for the personnel.
The instrument features an exhaust fan and separate ventilation ducts to ensure ideal testing environment.
Technical Parameters
Applicable Standard: ASTM D2272
Heating method: oil bath heating
Temperature control range: room temperature ~ 150℃, accuracy ±0.1℃
Pressure measurement range: 0~1500Kpa, accuracy 0.1%
Display method: Large screen LCD display in English, human-computer dialogue
Recording method: PLC automatically records and process results
Rotation speed: 100±3 revolutions/min
Power supply: AC220V±10% 50Hz
The power of the whole machine: ≤4KW
Software copyright patent number: 2016SR066921
FAQ
Q1: What standards does this product (HKL-2272 Apparatus for Oxidation Stability of Steam Turbine Oils by Rotating Pressure Vessel) comply with?
A: The apparatus conforms to ASTM D2272 Standard Test Method for Oxidation Stability of Steam Turbine Oils by Rotating Pressure Vessel. It measures how resistant to oxidation new and used turbine oils and other industrial oils are. It employs a vessel pressurized with oxygen to measure the resistance to oxidation of new and in-service turbine oils that have the same composition (base stock and additives) in the presence of water and a copper catalyst coil at 150℃.
Q2: Significance and use of HKL-2272 Apparatus for Oxidation Stability of Steam Turbine Oils by Rotating Pressure Vessel?
A: The estimation of oxidation stability is very helpful in maintaining consistency of this property of batch acceptance of production lots having similar operation. However, it is not the purpose of this test method to replace Test Method D943 or to be used for live comparisons of new oils of different compositions. Besides that, this test method is frequently used to measure the extent of oxidation test life of the oils that are currently in use.
