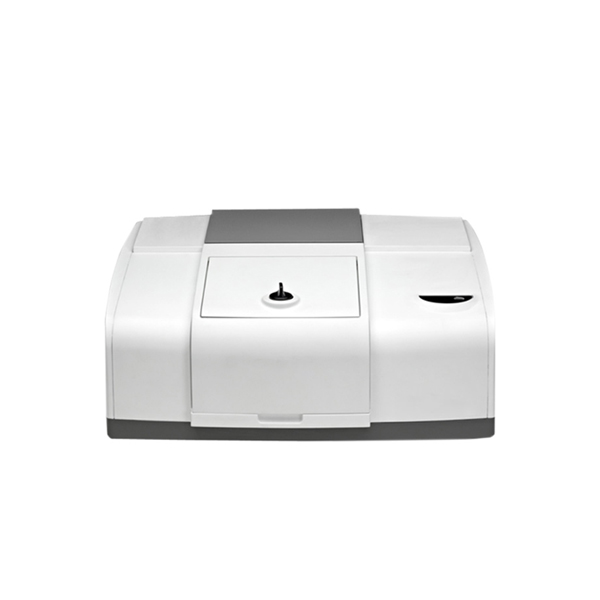

HKL- FTIR Spectrometer for Adhesives Analysis
Overview
Adhesives (bonding agents) are, for the most part, complex formulation systems made up of several components. Their composition can be mainly divided into two halves: first, the base raw materials which are responsible for the main bonding function; second, different additives used to optimize the bonding effect and meet the varied processing and production requirements. Among the most commonly used additives are curing and vulcanizing agents, vulcanization accelerators, anti-aging agents, plasticizers and toughening agents, diluents. The main use of the HKL-FTIR Spectrometer for Adhesives Analysis is to analyze the main components of adhesives. It is equipped with a technology known as Attenuated Total Reflectance (ATR) infrared spectroscopy. Different adhesives display unique characteristic absorption features in the infrared spectrum which is what this instrument by virtue of these features is capable of performing the qualitative analysis of the main components.
Features
The optical system achieves remarkable stability with a single-piece, molded optical bench assembly. Every major component is accurately set up at once without requiring recalibration which not only provides superior instrument dependability but also removes the maintenance difficulties of usual optical designs.
The advanced electronics system includes a top-of-the-line 24-bit ADC with 500 kHz conversion speed, together with a highly sensitive IR detector that is the direct original factory import. This set-up makes it possible to acquire spectral data continuously thus keeping the data genuine and trustworthy. With the most recent USB 2.0 communication interface added to the mix, the performance of data transmission is lifted substantially, making it possible to carry out a thorough analysis of samples in seconds.
Smart Humidity Management System: This design combines a sealed interferometer capable of instant humidity detection to reduce operator maintenance time. The visual color-changing desiccant indicator allows for timely replacements. In this way, the largest risk of operation in FTIR spectroscopy is effectively eliminated. There is no need to open the instrument in order to change the desiccant.
The integral molding process of the corner mirror: Both the moving and fixed mirrors use integrally molded gold-plated corner mirrors, thus greatly improving the light throughput and allowing the reflectivity to be very high; since the design without bonding is not affected by the temperature of the surroundings, the instrument can have even higher intrinsic stability.
Internationally Sourced Core Components:All the essential parts like light source, detector, beam splitter, and molding dies are obtained directly from the developed countries in Europe and America to ensure great quality and reliability.
Technical Parameters
Spectral Range: 7800–350 cm-1
Resolution: better than 1.0 cm-1
Signal-to-Noise Ratio: 30000:1 (Peak-to-Peak value, 4 cm-1 resolution, 1-minute background and sample scan, Test wavenumber: 2100 cm-1), RMS value: 150000:1
Detector: High-sensitivity infrared detector (imported) (Advantages: High testing accuracy, excellent repeatability, easy maintenance, and durable.)
Beamsplitter: Multilayer-coated potassium bromide (KBr) (imported)
Scanning Speed: Microcomputer-controlled with selectable scanning speeds, continuously adjustable, automatic spectrum comparison.
Light Source: Long-life, high-intensity air-cooled system (imported)
Wavenumber Accuracy: 0.01 cm-1
Software Workstation: Included with the instrument
Noise Level: ＜4.3 × 10-5
Power Supply: AC 220V, 50Hz
Data Transmission Interface: High-speed USB 2.0
Operating system: win7/win10
Weight: 14kg
