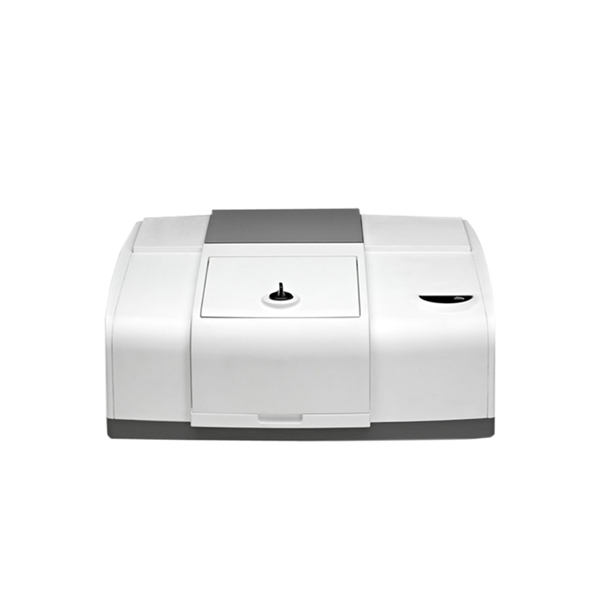

HKL-7371 FTIR Spectrometer for FAMEs In Middle Distillates
Overview
HKL-7371 FTIR Spectrometer for FAMEs In Middle Distillates conforms to the ASTM D7371 Standard Test Method for Determination of Biodiesel (Fatty Acid Methyl Esters) Content in Diesel Fuel Oil Using Mid Infrared Spectroscopy (FTIR-ATR-PLS Method). This test method allows you to find out how much biodiesel made of fatty acid methyl esters (FAME) is in diesel fuel oils. It can be used for concentrations changing by volume between 1.00 and 20%. This method, however, may be used only for FAME. Biodiesel is a blendstock commodity mainly used as a value-added blending component with diesel fuel. This test method can be used to check quality during the production and distribution of diesel fuel and biodiesel blends containing FAME.
Features
The optical bench of the advanced optical system stability is made of a monolithic, die-cast method. Precisely positioning of all essential parts takes place in a single manufacturing step, removal of the need for field adjustments. Besides this design guarantees long-lasting stability and it addresses maintenance problems that are typical to conventional optical systems.
The system, built for quick and accurate operation, unites a 24-bit A/D converter of the latest technology running at 500 kHz along with a top quality infrared detector. This combination is capable of recording ultra-high quality spectral information live. When paired with fast USB 2.0 connection, it significantly cuts down data transfer time, giving you trustworthy testing outcomes in mere seconds.
Intelligent Humidity Management System: This tool comes with a completely enclosed optical module protected by a desiccant. The real-time humidity tracking system that also has a visual sign gives you immediate information and makes maintenance easier. The new desiccant replacement method do not need taking off of the cover, which means that the optical bench is still aligned and safe from moisture of the environment all the time.
Exclusive Corner Mirror Technology: This model features gold-plated mirrors monolithically made that are located in both the moving and fixed optical paths. To reach the highest light throughput and reflectivity, besides assembly with no adhesives, it is also the case that the structure can hardly be affected by changes of ambient temperature, which makes the instrument indeed a very stable one internally by nature.
Core components imported from the developed countries of Europe and America: The essential parts including light source, detector, beam splitter, and die were initially imported to ensure top quality.
Technical Parameters
Spectral Range: 7800–350 cm-1
Resolution: better than 1.0 cm-1
Signal-to-Noise Ratio: 30000:1 (Peak-to-Peak value, 4 cm-1 resolution, 1-minute background and sample scan, Test wavenumber: 2100 cm-1), RMS value: 150000:1
Detector: A high-sensitivity infrared detector (imported)(Advantages: The testing accuracy is very high, also the repeatability is excellent. It is easy to maintain and very durable.)
Beamsplitter: Multilayer-coated potassium bromide (KBr) (imported)
Scanning Speed: Featuring microprocessor control, settings for variable scanning speed that can be changed freely, and a built-in system for automatic spectrum comparison.
Light Source: Long-life, high-intensity air-cooled system (imported)
Wavenumber Accuracy: 0.01 cm-1
Integrated Software Suite: This instrument is equipped with a complete software package, which provides users with a database containing approximately 200,000 reference infrared spectra.
Noise Level: ＜4.3 × 10-5 A
Power Supply: AC 220V, 50Hz
Data Transmission Interface: High-speed USB 2.0
Operating system: win7/win10
Weight: 14kg
FAQ
Q1: Which standard does HKL-7371 FTIR Spectrometer for FAMEs In Middle Distillates comply with?
A: HKL-7371 FTIR Spectrometer for FAMEs In Middle Distillates conforms to the ASTM D7371 Standard Test Method for Determination of Biodiesel (Fatty Acid Methyl Esters) Content in Diesel Fuel Oil Using Mid Infrared Spectroscopy (FTIR-ATR-PLS Method). A small amount of diesel fuel, biodiesel, or a mixture of biodiesel and diesel fuel is placed directly inside a liquid attenuated total reflectance (ATR) sample cell. Next, the composite of infrared light is transmitted through the sample and onto the detector camera, and subsequently, detector output or signal is obtained. Different wavelengths, in the range of absorption spectrum, which are strongly related to biodiesel or other components are chosen for further analysis.
Q2: What is the applicable scope of HKL-7371 FTIR Spectrometer for FAMEs In Middle Distillates?
A: This test method allows you to find out how much biodiesel made of fatty acid methyl esters (FAME) is in diesel fuel oils. It can be used for concentrations changing by volume between 1.00 and 20%. This method, however, may be used only for FAME. Biodiesel is a blendstock commodity mainly used as a value-added blending component with diesel fuel. This test method can be used to check quality during the production and distribution of diesel fuel and biodiesel blends containing FAME.
Q3: What application industries do your instruments cover?
A: Our instruments have gained a lot of popularity through their extensive use in research institutions, petrochemical and mining industries, medical institutions, and environmental protection departments. This level of quality has helped us widely establish our presence in the market and gain the trust of customers.
Q4: Do you have relevant industry certifications?
A: Our company is certified with the ISO 9001 Quality Management system, the products that we manufacture are certified by CE, and we also have CPA (Type Approval) certificates; this guarantees the complete quality and data accuracy - from the management system to the products themselves.
Q5: Do you offer customized solutions?
A: Sure, our specialist technical team is able to offer you expert advice on choosing the right equipment based on your application scenarios - such as sample type, required detection precision, and budget constraints. Please click Online Consultation on the right side of the page or fill out our inquiry form, and we will get back to you at the earliest.
