HKL-2163 GC for determining Hydrocarbons in LPG
Overview
HKL-2163 GC for determining Hydrocarbons in LPG conforms to ASTM D2163 Standard Test Method Determination of Hydrocarbons in Liquefied Petroleum (LP) Gases and Propane/Propene Mixtures by Gas Chromatography. This test method offers a way to quantitatively measure the amount of specific hydrocarbons in liquefied petroleum (LP) gases and in mixtures of propane and propene, except for high-purity propene. The hydrocarbon range is from C1 to C5. Component concentrations are determined in the range of 0.01 to 100 volume percent.
Hydrocarbon composition data for liquefied petroleum gases (LPG) and propene mixtures can be used to calculate physical properties such as relative density, vapor pressure, and motor octane number. The precision and accuracy of such compositional data are extremely important when they are applied to calculate various properties of these petroleum products.
Features
With a 320×240 dot matrix 5.7-inch large-screen liquid crystal display, real-time monitoring of temperatures and operating conditions for each channel is perfectly achieved.
Automatic startup self-test, six independent temperature control channels, and seven-stage program temperature rise function.
Wide-range self-diagnosis function: When an instrument failure occurs, it automatically displays the fault phenomenon, fault code, and fault cause, helping you quickly identify and resolve issues to maintain optimal laboratory working conditions.
Over-temperature protection function: Allows arbitrary setting of protection temperatures. If any channel exceeds the set temperature, the instrument automatically cuts off power and alarms.
Carrier gas interruption and leakage protection function: When carrier gas pressure is insufficient, the instrument automatically cuts off power and stops heating, effectively protecting the chromatographic column and thermal conductivity detector from damage.
Intelligent fuzzy control rear-door opening system automatically tracks temperature and dynamically adjusts the rear-door opening angle, enabling precise temperature control even near room temperature.
Equipped with packed column on-column injection, glass liner injection, and capillary split/splitless injection devices with septum purge function, as well as support for installing gas samplers.
High-precision dual-stabilized gas flow paths allow installation of up to four detectors simultaneously.
Advanced gas flow design enables simultaneous use of hydrogen flame ionization detector and thermal conductivity detector.
Eight external event functions support multi-valve switching.
Optional electronic flow/pressure display system and built-in workstation device.
Technical Parameters
Temperature Control Range: Ambient temperature +5°C to 400°C, Increment: 0.1°C
Temperature Control Accuracy: Better than ±0.1°C
Programmed Temperature Ramp: Seven stages
Heating Rate: 0.1 to 40°C/min
Main Unit Dimensions: 555 × 525 × 485 mm

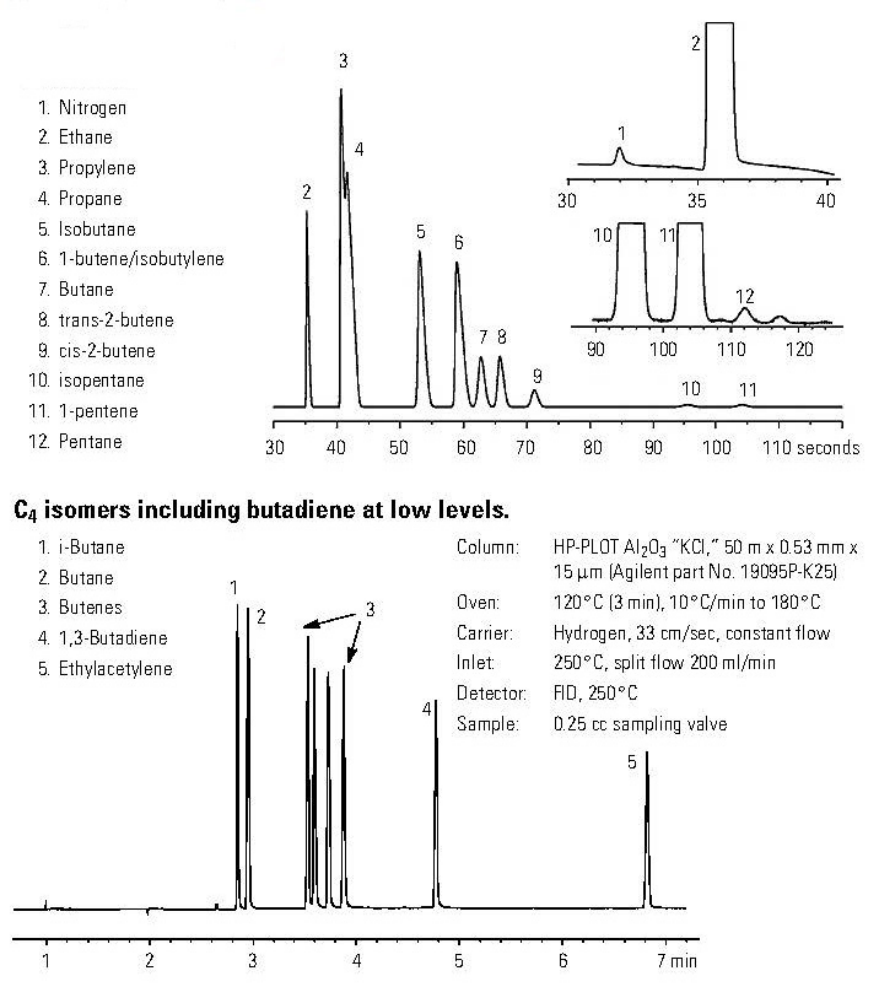

Chromatogram
FAQ
Q1: What standards does this product (HKL-2163 GC for determining Hydrocarbons in LPG) comply with?
A:HKL-2163 GC for determining Hydrocarbons in LPG conforms to ASTM D2163 Standard Test Method Determination of Hydrocarbons in Liquefied Petroleum (LP) Gases and Propane/Propene Mixtures by Gas Chromatography. This test method offers a way to quantitatively measure the amount of specific hydrocarbons in liquefied petroleum (LP) gases and in mixtures of propane and propene, except for high-purity propene. The hydrocarbon range is from C1 to C5. Component concentrations are determined in the range of 0.01 to 100 volume percent.
Q2: Significance and use of HKL-2163 GC for determining Hydrocarbons in LPG?
A:Hydrocarbon composition data for liquefied petroleum gases (LPG) and propene mixtures can be used to calculate physical properties such as relative density, vapor pressure, and motor octane number. The precision and accuracy of compositional data like these are absolutely critical when they are used to estimate the various properties of these petroleum products.
Q3: What is the minimum order quantity? How long is the delivery lead time?
A: The minimum order quantity is one unit, and delivery is approximately 20 days after advance payment.
Q4: How can I get a product quotation?
A: Please submit your requirements via the contact page on our official website or customer service email, and we will contact you within 24 hours with a detailed quotation.
Q5: Do you offer customized solutions?
A: Yes, we can provide customized instrument configurations and testing solutions based on the customer’s specific application need
